DOZYANT Parts Kit Replacement Charbroil Gas Grill Burners, Stainless Steel Heat Plates and Crossover Tubes
New parts from DozyAnt: Charbroil BBQ Gas Grill Replacement Crossover Tubes and Burners,Heat Plates ;Burner Dimensions: 15 7/8″ x 1″; Burner Material: Stainless Steel; Crossover Dimensions: 6 3/8″; Carry Over Material: Stainless Steel; Heat Tent Dimensions: 16″ x 3 13/16″; Heat Plate Material: Stainless Steel; Intensive holes for better flame effect. Cooks better! Lasts longer; Extend the life of your grill; Exact-fit parts;
Product Features
- Fits Charbroil Models: 463248108, 463260707, 463261107, 463268007, 463268008, 463268606, 463268706, 466248108, 466268008

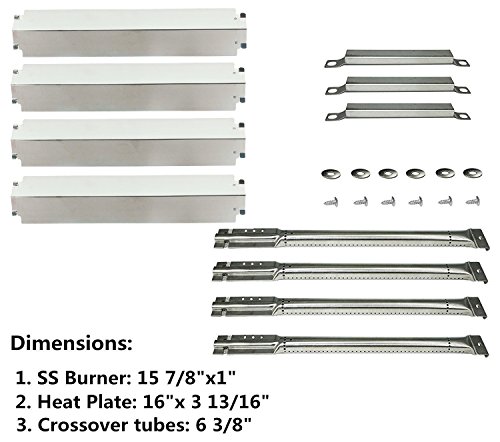

- Parts Kit includes 3 Stainless Steel carry-over tubes, 4 Stainless Steel burners and 4 Stainless Steel heat plates; Replaces burner part numbers G413-5000-01, 80005703, 80005591, 80006502, 80013421, CBP2. Replaces heat shield part numbers 80003332; Replaces cross over tube part numbers 80009949, 80006583, 80010680, 80009028, G413-0004-01.
- Burner Dimensions: 15 7/8″ x 1″ ; Burner Material: Stainless Steel
- Heat Tent Dimensions: 16″ x 3 13/16″ ; Heat Plate Material: Stainless Steel
- Crossover Dimensions: 6 3/8″ ; Carry Over Material: Stainless Steel
Loading...
![DOZYANT 1/2″ QDD LP Gas Quick Connect/Disconnect Connector [8630] Solid Brass 1/2 PSIG Pre ...](https://www.grillepic.com/wp-content/uploads/2020/03/41yb-Vl0U5L-250x210.jpg)
New life for my Charbroil Grill! Worked great in my Charbroil commercial series grill. I had recently invested in some new cast iron grill racks so I wanted to replace my burner tubes and get a couple more years out of the grill. You might find that the back mounting brackets are rusted and/or broken off like two of mine were, so…
I considered removing the gas tubes and replacing them even though mine are still good then I would not have to deal with the .. I ordered this set as it was listed for charbroil grills. The tents fit, just barely. The connectors are different but will fit one I get the almost destroyed screws out of mine. I considered removing the gas tubes and replacing them even though mine are still good then I would not have to deal with the screws, but the tubes aren’t even close. They are way too short and one end doesn’t even come close to matching. I kept the product as I needed the tents asap. But I do have to say that…
